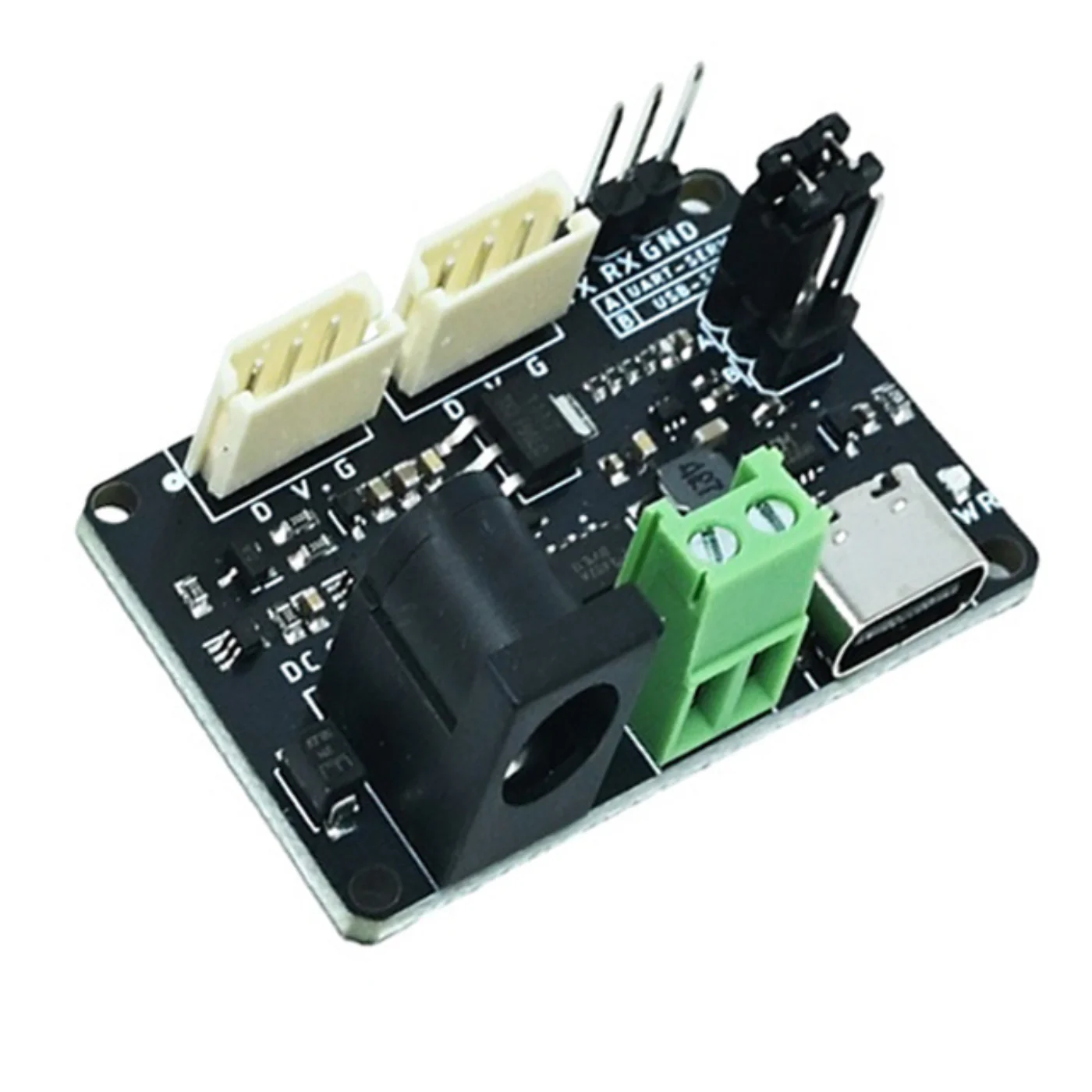

SmartElex Serial Bus Servo Driver Board, Integrates Servo Power Supply and Control Circuit

SmartElex Serial Bus Servo Driver Board, Integrates Servo Power Supply and Control Circuit

The SmartElex Serial Bus Servo Driver Board is an advanced Servo Driver Board designed to simplify high-density servo control in robotics applications. It integrates a reliable Servo Power Supply and intelligent Control Circuit, allowing seamless communication with your MCU or host system through a single UART interface

With sufficient external power, the board can manage up to 253 ST/SC-series serial bus servos, each capable of delivering detailed feedback such as position angle, load, operating voltage, temperature, and working mode.

This centralized control approach minimizes wiring, saves space, and ensures precise, synchronized motion, making it an excellent choice for complex robotic systems and professional-grade automation projects.

Features:

• Supports a serial UART interface to the MCU/host for servo control.
• Drives up to 253 ST/SC series serial bus servos concurrently.
• Onboard DC power supply (9V to 12.6V) for the servo rail.
• Servo feedback includes angle, load, voltage, mode, temperature, and error.
• Integrated control circuit for reliable operation and signal integrity.
• Jumper or switch to choose between UART and USB connection modes.
• Compact PCB footprint (approx. 42 x 33 mm) for confined places.
• Dual power inputs: DC barrel jack and screw terminal choices.
