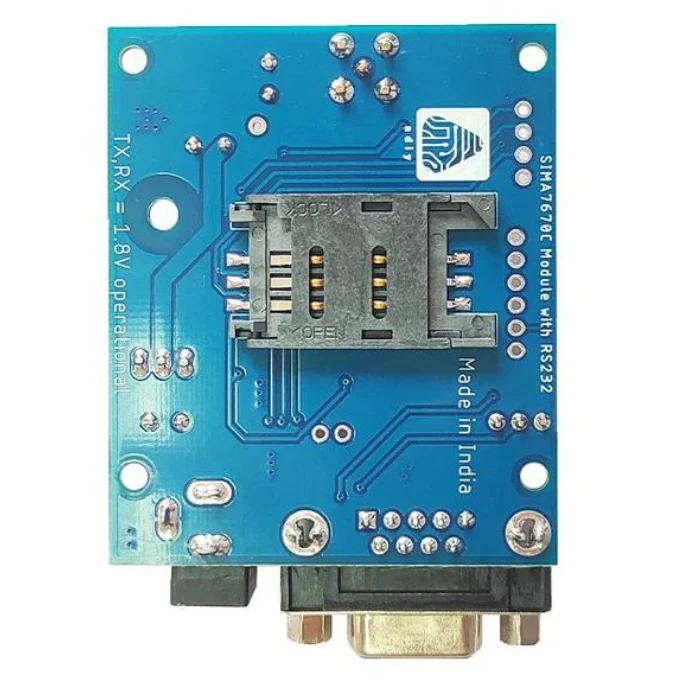

The ADIY 4G LTE modem is equipped with a SIM card socket, an SMA antenna connector, a DC power jack, and an RS232 interface. It supports various wireless communication modes including LTE-TDD, LTE-FDD, GSM, GPRS, and EDGE.

This board is centered around the SIMCOM A7670C LTE module and is furnished with an RS232 interface. The RS232 interface allows for effortless connectivity to a computer or laptop using a USB to Serial connector, or to a microcontroller using an RS232 to TTL converter. Additionally, a 3-pin header provides access to a 1.8V level UART interface, enabling direct interfacing with microcontrollers. Communication with the A7670C module is achieved through the utilization of AT commands.

Pinout:

Features:

• Serial interface
• Based on the SIMCOM A7670C LTE modem
• Supports LTE-FDD, LTE-TDD, and GSM frequency bands
• Controlled via AT commands
• SIM card holder included
• SMA antenna connector
• DC power jack
• RS232 interface
• Suitable for LTE and GSM networks
• Maximum downlink rate of 10Mbps
• Abundant software functions such as FOTA, LBS, and SSL
• RS232 DB9 Connector interface
• SMA connector for external antenna
• 1.8V UART header
