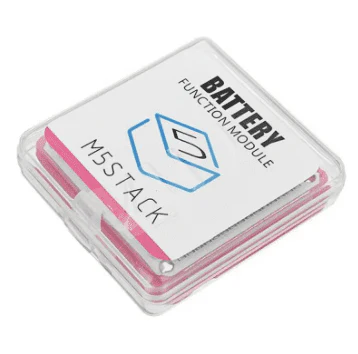

M5 Stack Battery Module for ESP32 Core Development Kit

M5 Stack Battery Module for ESP32 Core Development Kit

Would you like to make a demo or prototype that requires long battery life? Perhaps using the battery in the M5GO base and the Basic base is not enough for you.

Here comes the BATTERY which is a handy M5modules to upgrade your Lipo battery life. Since the Lipo batteries can work in parallel, you can stack multiple batteries to maximize your power endurance.

CAUTION: The safety of the Lipo battery is affected by many conditions. Overcharge, over-discharge, over-temperature, short circuit, crush, and nail penetration may all result in a catastrophic failure, including the pouch rupturing, the electrolyte leaking, and fire. Although every battery we offer have accompanied by a protection circuit board, using Lipo battery in your product still needs to be treated with caution

Once the BATTERY is stacked underneath the M5 controller, the battery positive pole is connected to the VBAT pin at IP5306

BATTERY: The Battery extension module is a 700mAh battery ADD-ON.
