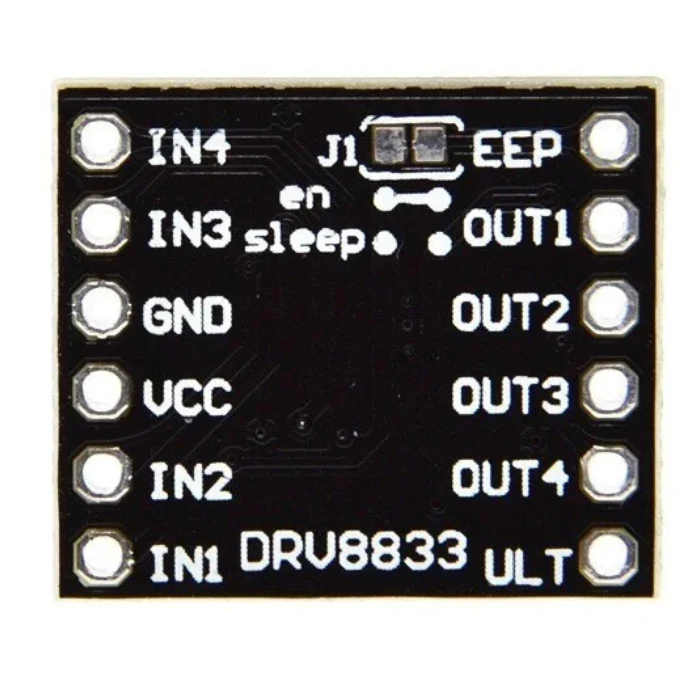

DRV8833 2 Channel DC Motor Driver

DRV8833 2 Channel DC Motor Driver

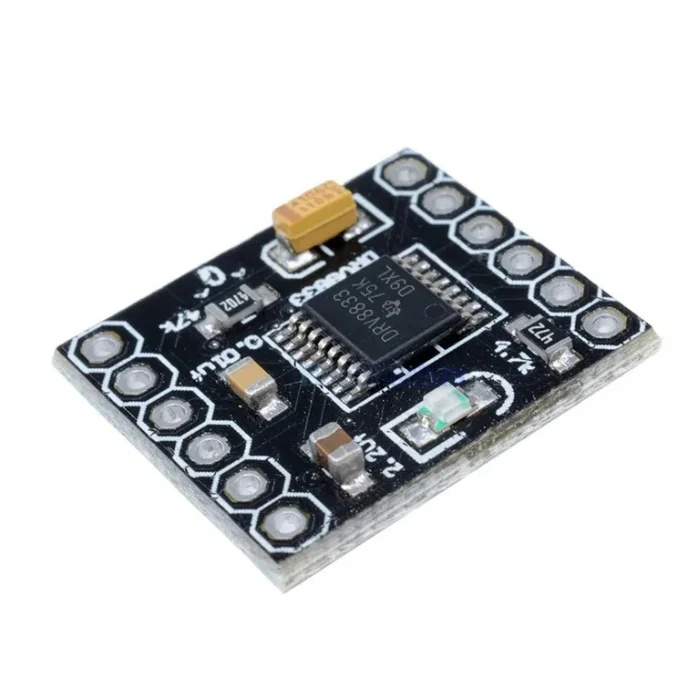

The DRV8833 2 Channel DC Motor Driver is a small, powerful motor driver that controls two brushed DC motors. It works with motor voltages between 2.7V and 10.8V, providing up to 1.2A of continuous current per channel, with short bursts up to 2A. This makes it ideal for low-voltage, small-motor applications. The board comes fully assembled with the DRV8833 chip and includes a safety feature for reverse battery protection. It also has built-in current limits and doesn’t need an external power supply for the logic voltage, making it easy to use in various projects.

Key features

• Dual-H-bridge for two DC motors or one stepper motor.
• Voltage range: 2.7V to 10.8V.
• 1.2A continuous (2A peak) per motor, 2.4A continuous (4A peak) when paralleled.
• 3V- and 5V-compatible inputs.
• Protection against under-voltage, over-current, and over-temperature.
• Reverse-voltage protection.
• Current limiting with optional sense resistors.
