74LS125 Quad Tri-State Buffer IC DIP-14 Package

74LS125 Quad Tri-State Buffer IC DIP-14 Package

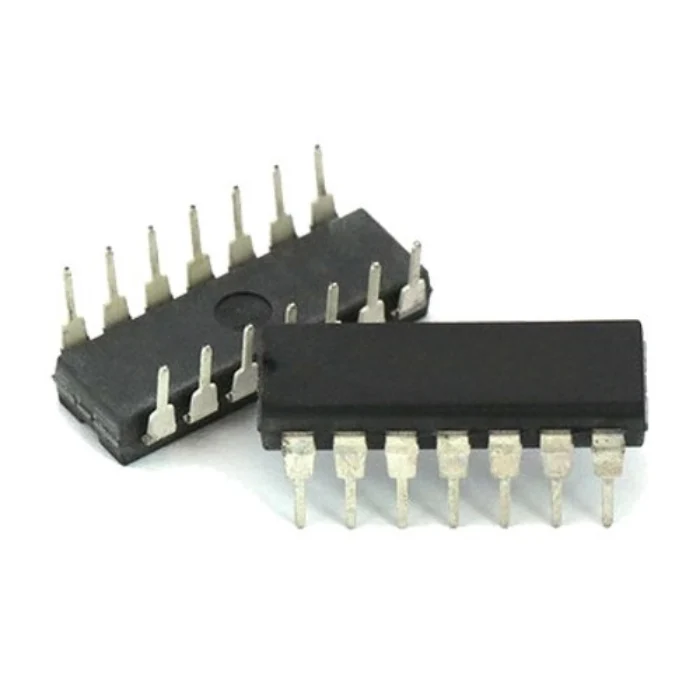

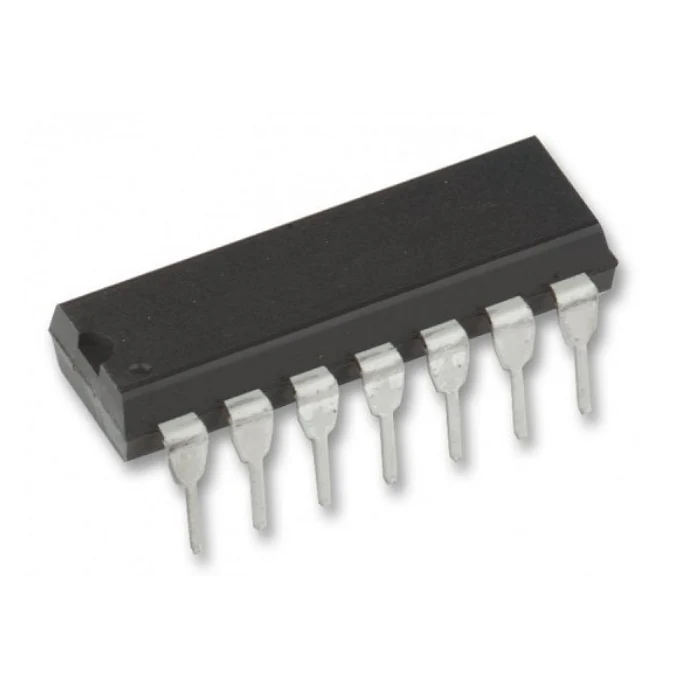

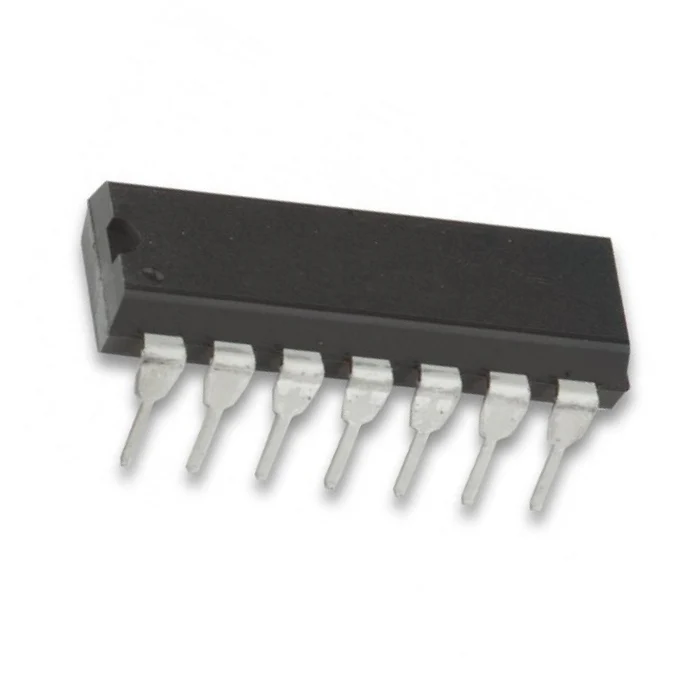

The 74LS125 Quad Tri-State Buffer IC DIP-14 Package is a versatile logic device that integrates four independent non-inverting buffers, each featuring a 3-STATE output.

As a tri state buffer IC 74125, it delivers low impedance characteristics when enabled, providing strong drive capability to bus lines without the need for external resistors.

When disabled, both output transistors are turned off, presenting a high-impedance state that effectively isolates the device from the bus.

This design minimizes bus contention by ensuring the disable time is shorter than the enable time, making it ideal for high-performance digital systems and bus-oriented applications.

Features:

• Quad non-inverting buffer gates
• 3-state output for bus line applications
• High drive capability with low output impedance
• High impedance state when disabled
• Safe enable/disable timing to prevent bus conflicts
